MS3112E-14‑19P Circular Connector 19 Pin Panel Mount Male Receptacle Connector
MS3112E14‑19P is a MIL‑DTL‑26482 Series I miniature circular panel‑mount male receptacle, featuring size‑14 shell,19 gold‑plated solder contacts and bayonet quick‑coupling; its olive‑drab cadmium‑plated aluminum shell provides reliable corrosion resistance, with each contact rated 7.5A, operating temperature ‑55℃~+125℃ and minimum 500 mating cycles, suited for aerospace, vehicle and industrial automation applications and inter‑mateable with matching Series I plugs.

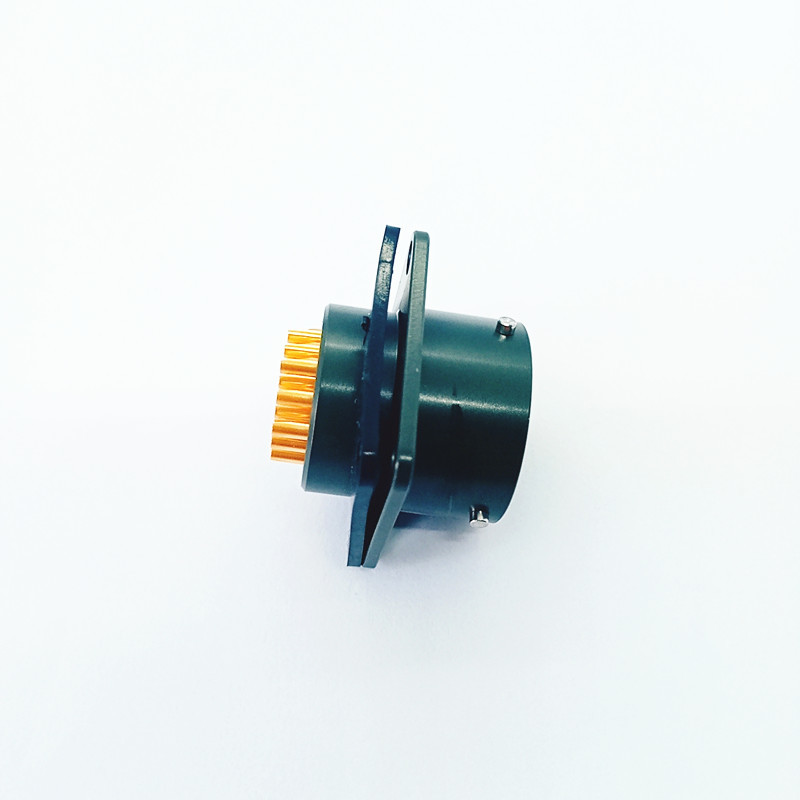

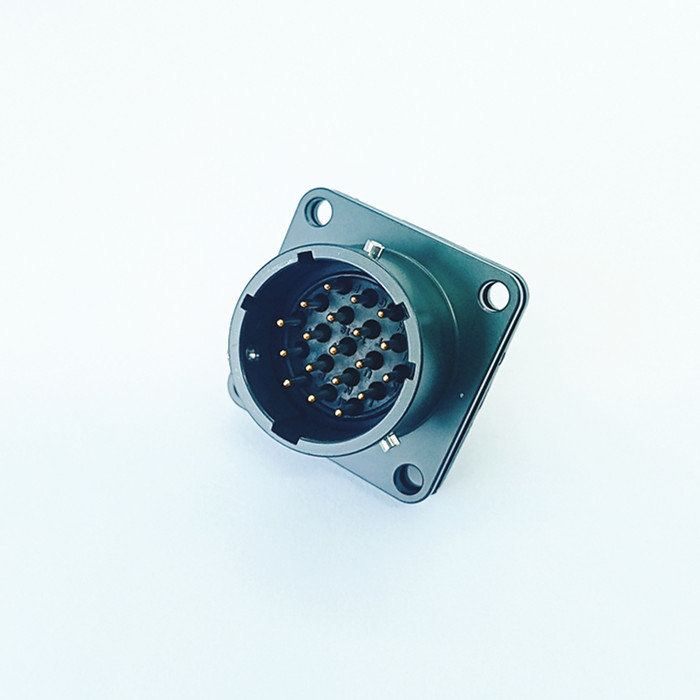

Product display
Product Performance Details
| Product model |
MS3112E14-19P |
Contact piece |
Gold plating of copper alloy |
| Shell material |
Aluminum alloy |
Insulation resistance |
5000MΩ |
| Vibration |
10Hz~2000Hz 147m/s2 |
Working voltage |
500V |
| Insulator |
Synthetic rubber |
Mechanical life |
500 times |
| Impact |
980m/s2 |
Relative humidity |
When the temperature is 40±2℃, it is 90% to 95% |
| Collision |
Acceleration 392m/s2 |
Withstand voltage |
5000V |
| Working temperature |
-55℃ ~ +125℃ |
Working Current |
10A |
Physical product display
Product external dimensions
Related product recommendations
Display of Strength
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
