Gold Plated Brass SMA Reverse Polarity Adapter 6GHz SMA Male To Female Adapter RPSMA / SMA-JK

Brand Name : ZSX

Model Number : RPSMA/SMA-JK

Certification : ISO9001

Place of Origin : China

MOQ : 20 pcs

Price : Depending on the quantity

Payment Terms : T/T,D/P,Western Union

Supply Ability : 1000000Pcs/Year

Delivery Time : 5-8 Days

Packaging Details : Carton packaging

Name : RF Adapter RPSMA/SMA-JK

Gender : Male to female

Boday Material : Stainless steel

Insulator material : PTFE

Working temperature : -45℃~+125℃

VSWR : ≤ 1.3

Contact Now

RF Adapter RPSMA/SMA-JK Reverse Polarity SMA Male To Female Gold-plated Brass Adapter

RPSMA/SMA-JK is a 50Ω straight RF adapter designed to connect RP‑SMA male to SMA female. It features a precision brass body with nickel-plated shell and gold-plated contacts, providing low insertion loss, excellent VSWR, and stable signal transmission up to 6GHz. With reliable threaded coupling and robust construction, this adapter ensures secure connection and long service life, widely used for WiFi, antennas, RF test equipment, wireless communication systems and various high-frequency applications.

Product display

Product Performance Details
Product model RPSMA/SMA-JK Contact resistance Center contact:≤3mΩ Outer contact:≤2mΩ
Characteristic impedance 50 ohm Body material Gold-plated brass
Frequency range DC-6GHz Insulator PTFE
Voltage standing wave ratio ≤1.2 Central conductor Gold-plated beryllium copper
Medium pressure resistance 1000V RMS Temperature range -45℃~+125℃
Dielectric constant ≥5000MΩ Durability ≥500 Cycles

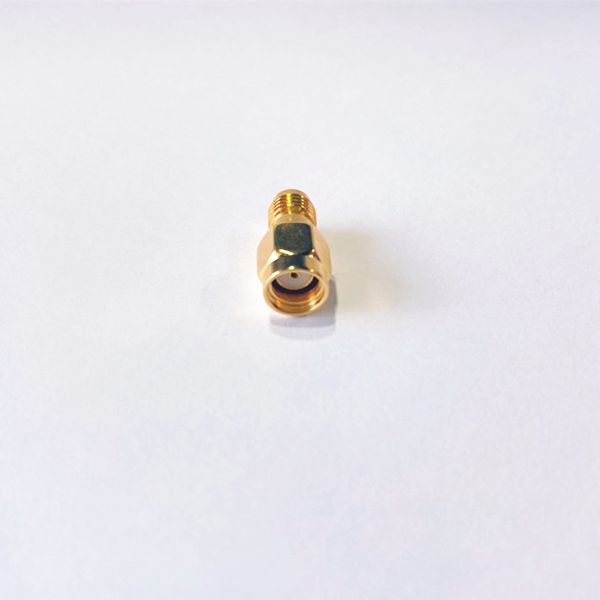

Physical product display
Gold Plated Brass SMA Reverse Polarity Adapter 6GHz SMA Male To Female Adapter RPSMA / SMA-JK Gold Plated Brass SMA Reverse Polarity Adapter 6GHz SMA Male To Female Adapter RPSMA / SMA-JK

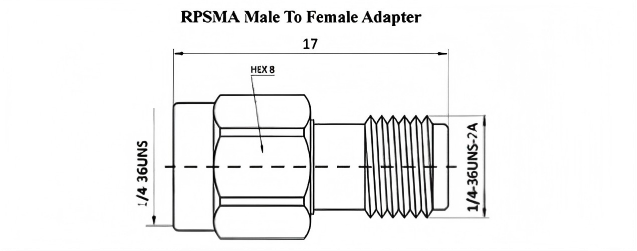

Product external dimensions
Gold Plated Brass SMA Reverse Polarity Adapter 6GHz SMA Male To Female Adapter RPSMA / SMA-JK
Related product recommendations
Gold Plated Brass SMA Reverse Polarity Adapter 6GHz SMA Male To Female Adapter RPSMA / SMA-JK Gold Plated Brass SMA Reverse Polarity Adapter 6GHz SMA Male To Female Adapter RPSMA / SMA-JK
Display of Strength
Office area
Gold Plated Brass SMA Reverse Polarity Adapter 6GHz SMA Male To Female Adapter RPSMA / SMA-JK Gold Plated Brass SMA Reverse Polarity Adapter 6GHz SMA Male To Female Adapter RPSMA / SMA-JK
Production Plant Area
Machining production workshop
